CellGate Watchman W410 in Pompano Beach: intercom dead, app says connection failed

What I found on arrival

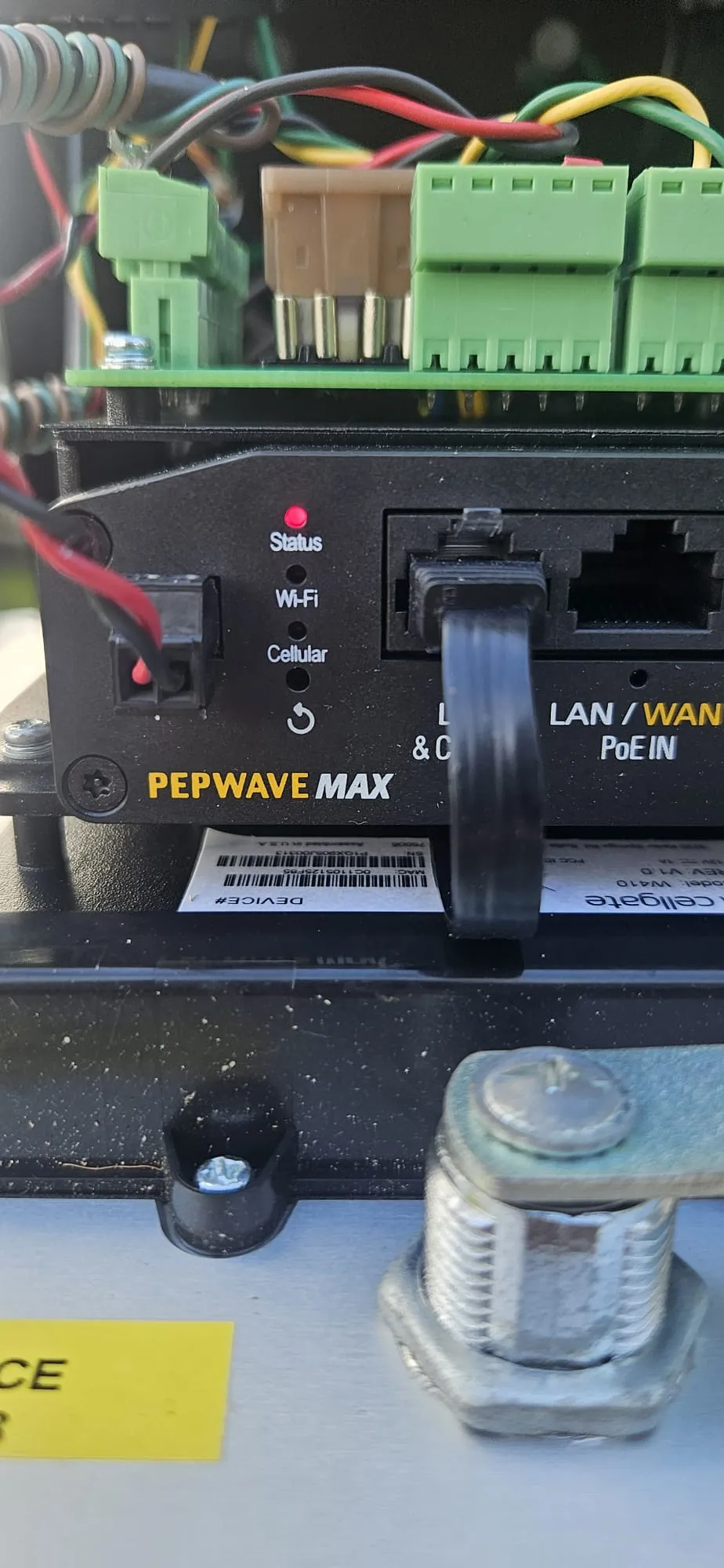

The status indicator light was blinking non stop. Not a pattern, not a sequence, just constant. No calls were going out, and the app failed on every attempt to open the gate.

That combination is worth paying attention to. A unit that has lost its connection usually still behaves normally in other ways. This one was failing at everything at once, which says less about the network and more about what is feeding the unit.

So before touching the front panel, I went to the power supply.

What I tested

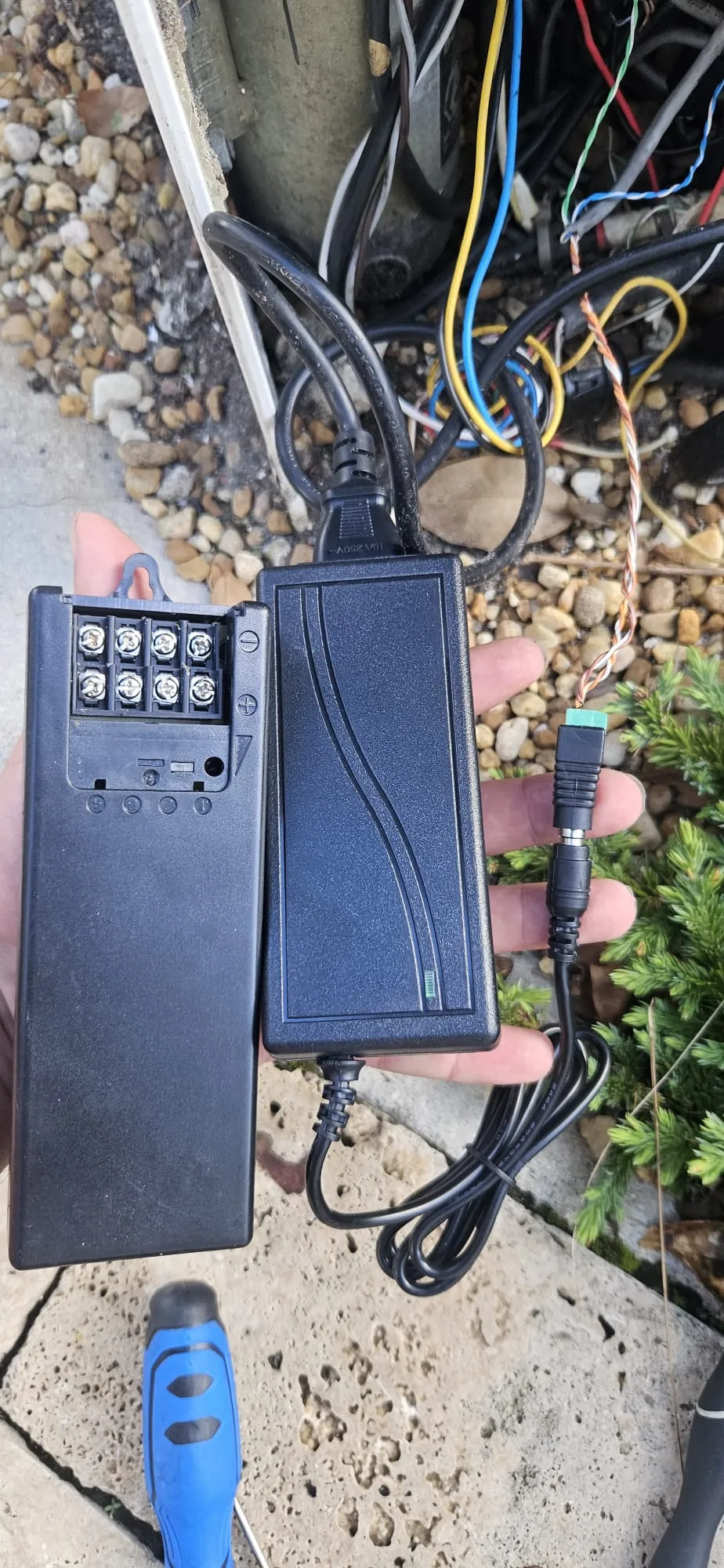

The Watchman W410 runs on 12 volts. The supply feeding it was putting out 22.04 volts.

That is where I stopped diagnosing the intercom. Nothing downstream of a supply reading almost double its rating is going to behave, and replacing the front panel without fixing the supply would have meant putting a new board behind the same problem.

While I was on the property I also ran both LiftMaster operators. Both were old, and both were running a little rough.

What I offered

I gave her two prices in writing before anything started.

A new power supply, which is what I believed the fault was. And a new front panel, priced anyway, in case the supply did not solve it. Plus the maintenance on both operators.

Everything upfront, approved before we started, nothing decided after the fact. She agreed to all of it.

What happened

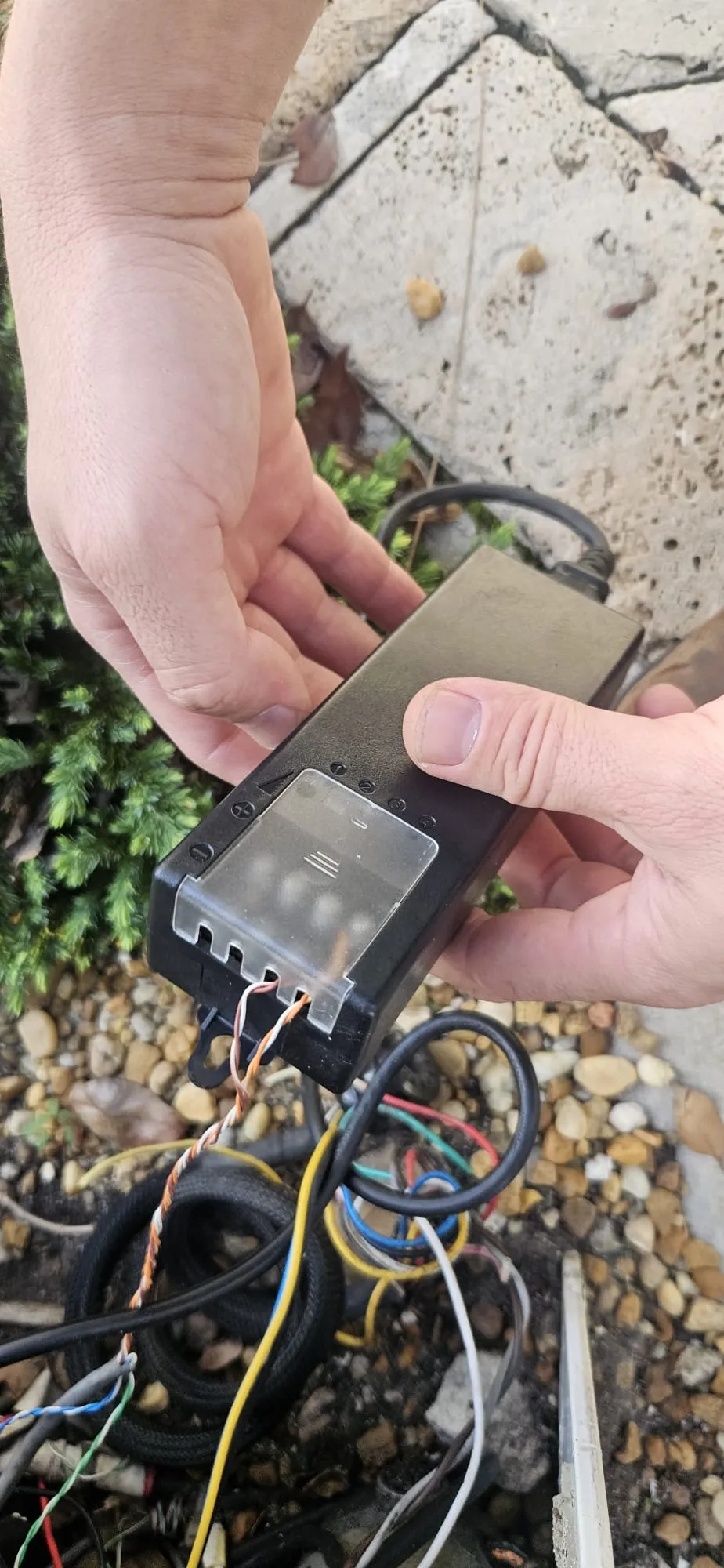

We came back the next morning. The new power supply went in and the intercom came back to life immediately. Calls went out, the app connected, the gate opened. No further work needed on it.

The front panel never got touched.

The maintenance visit

With the intercom sorted we went through both LiftMaster operators. Lubricated the moving hardware, ran them through full cycles, and tested everything on the safety side.

The safety sensors were working properly. The loop was working properly. What we did find was that the backup batteries in both operators were dead.

I told her what we found and she told me she has a house generator for outages. So the backup batteries are extra rather than necessary. Her gates keep running through a power cut because the whole property does. I told her not to replace them.

What a real gate tech knows

A CellGate that fails at everything at once is usually not failing at anything. It is being starved or over-fed by something upstream. The front panel is the expensive assumption, and it is the one worth testing your way out of before you commit to it.

Check what is feeding the unit before you replace the unit.

The result

One power supply fixed an intercom that had been quoted as a front panel replacement. Both operators serviced. Two dead batteries left alone because the customer did not need them. The total came in well below what she had been quoted.
